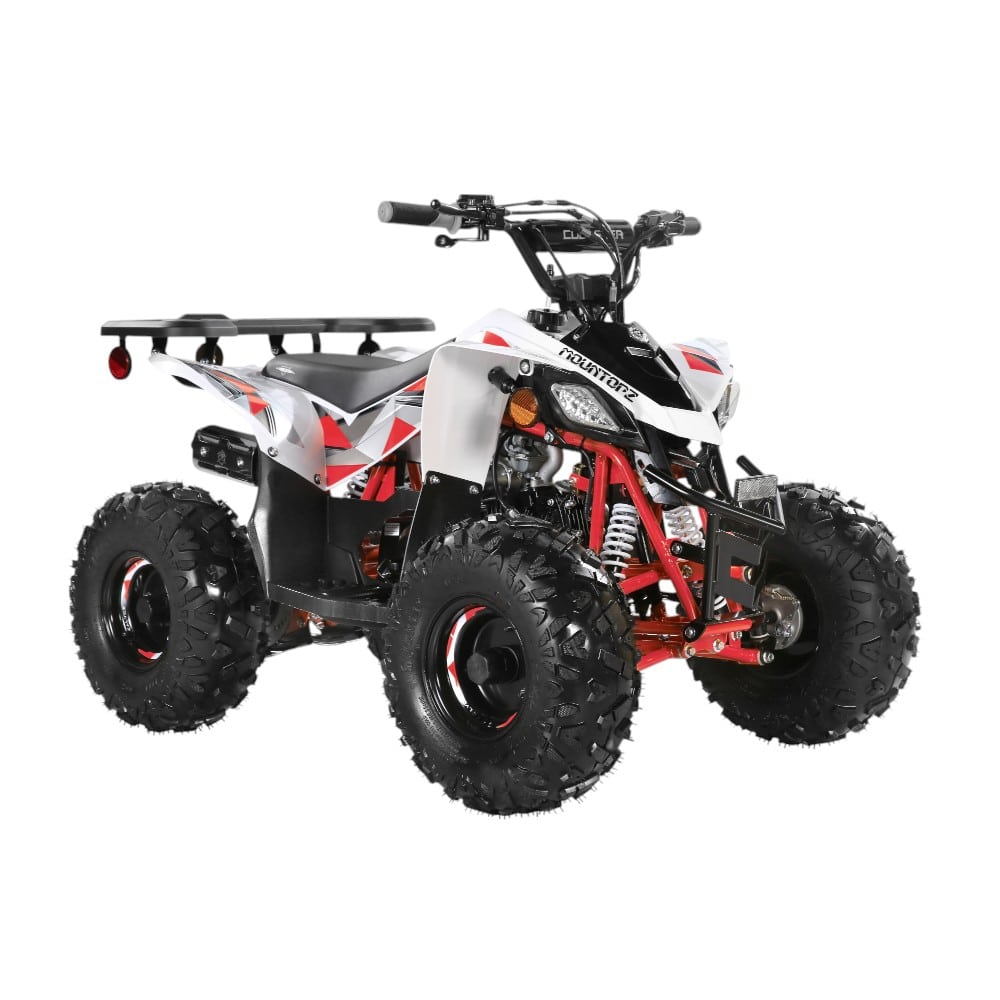

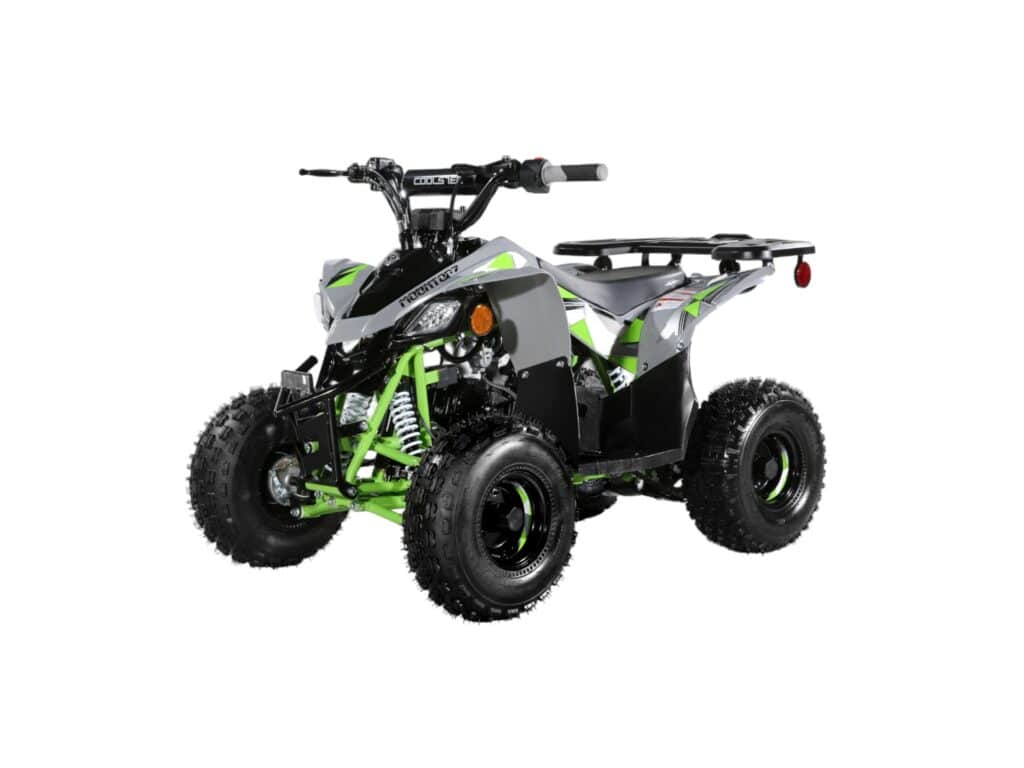

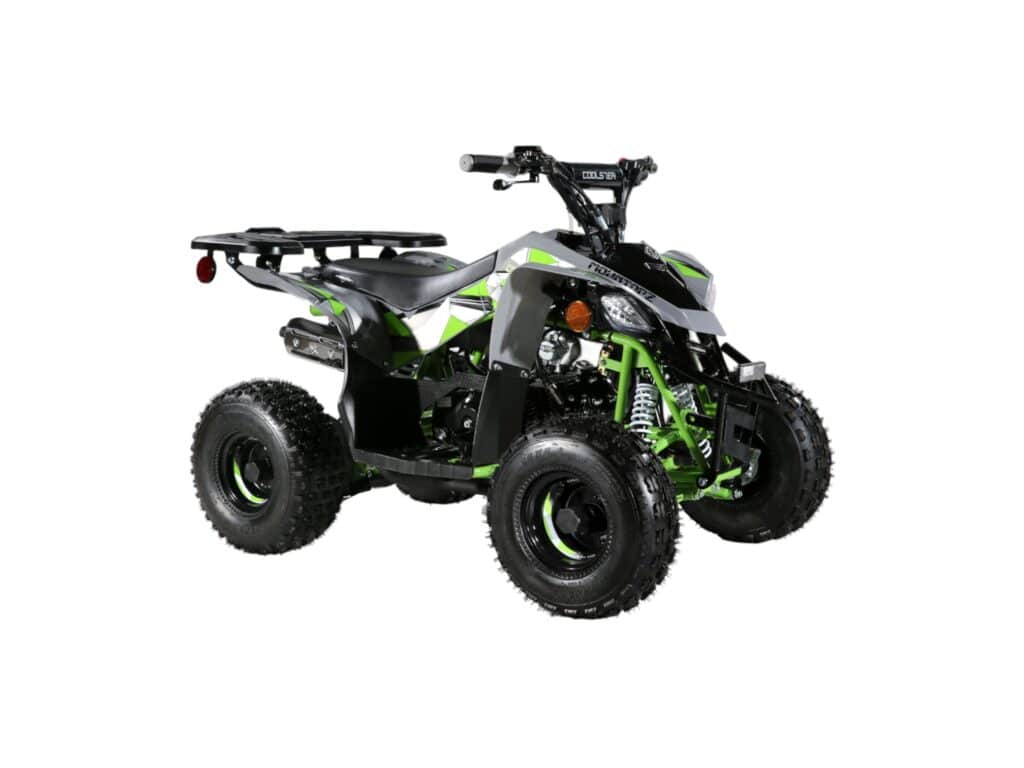

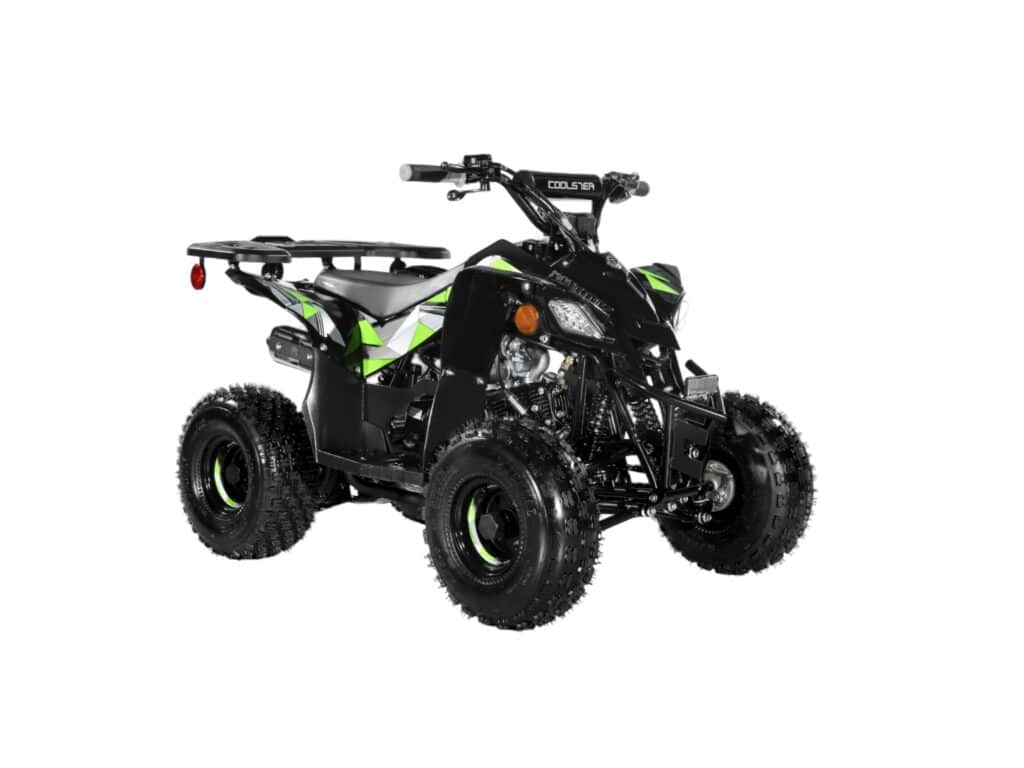

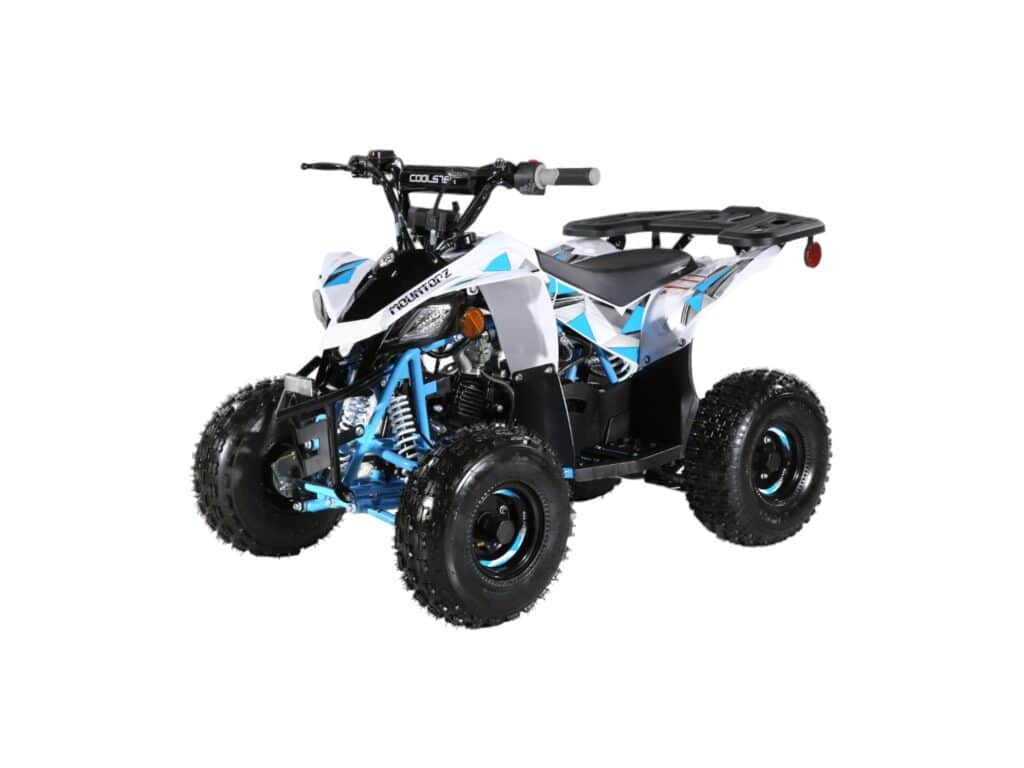

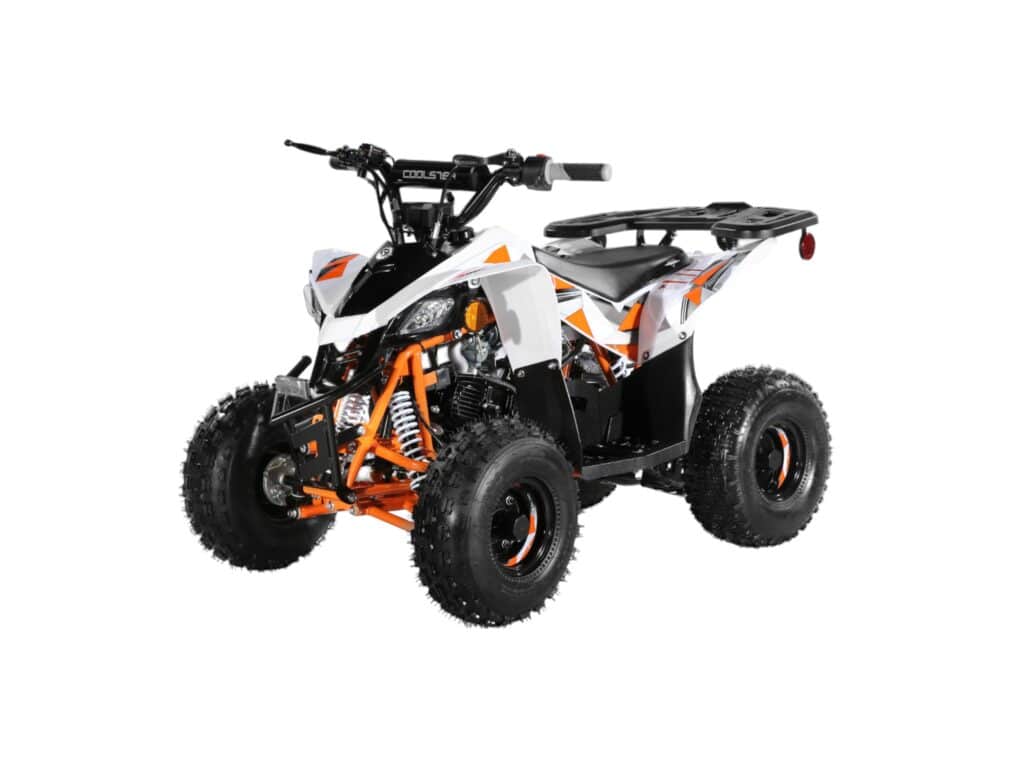

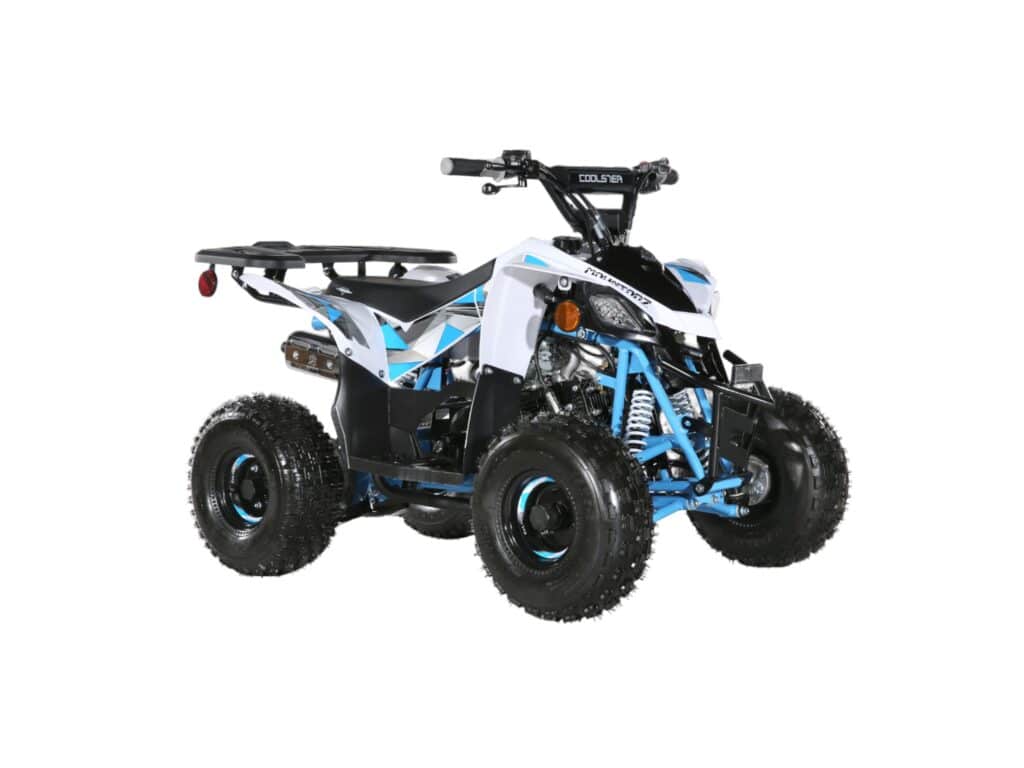

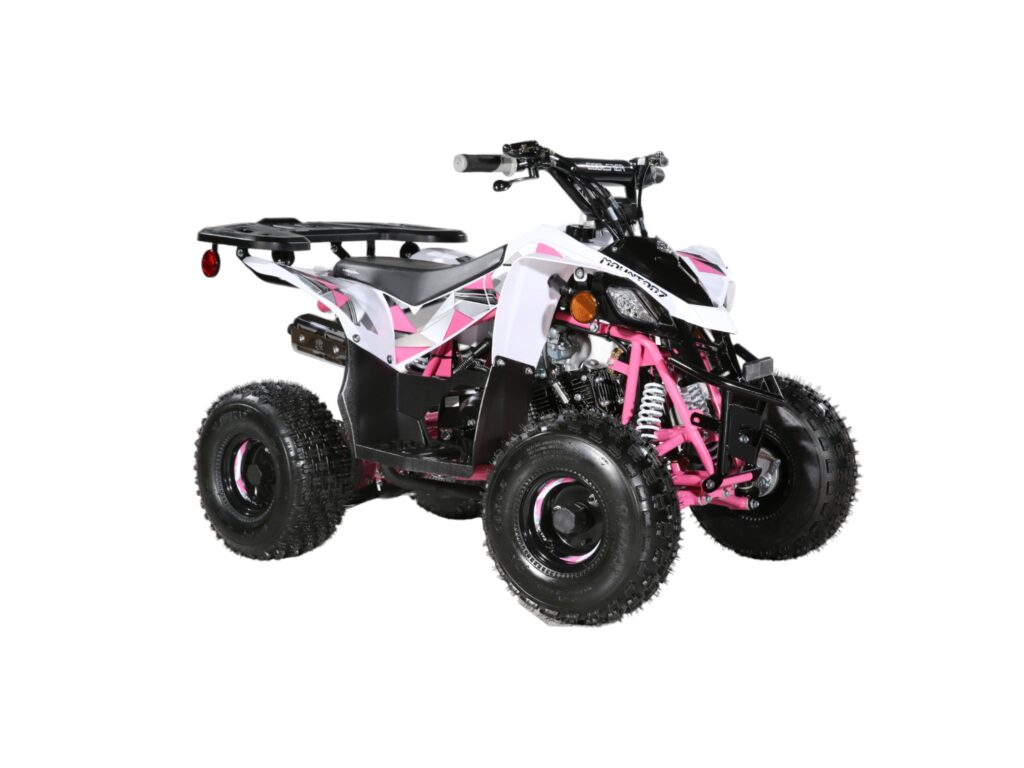

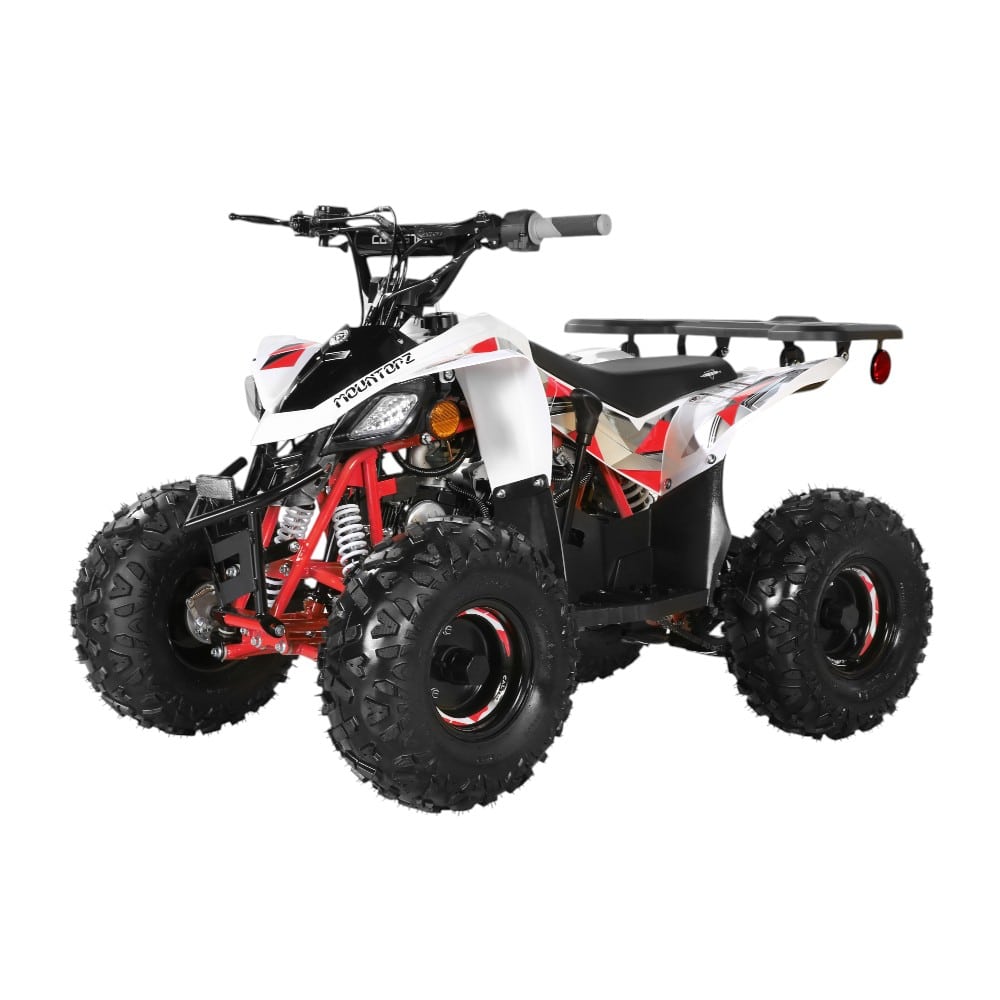

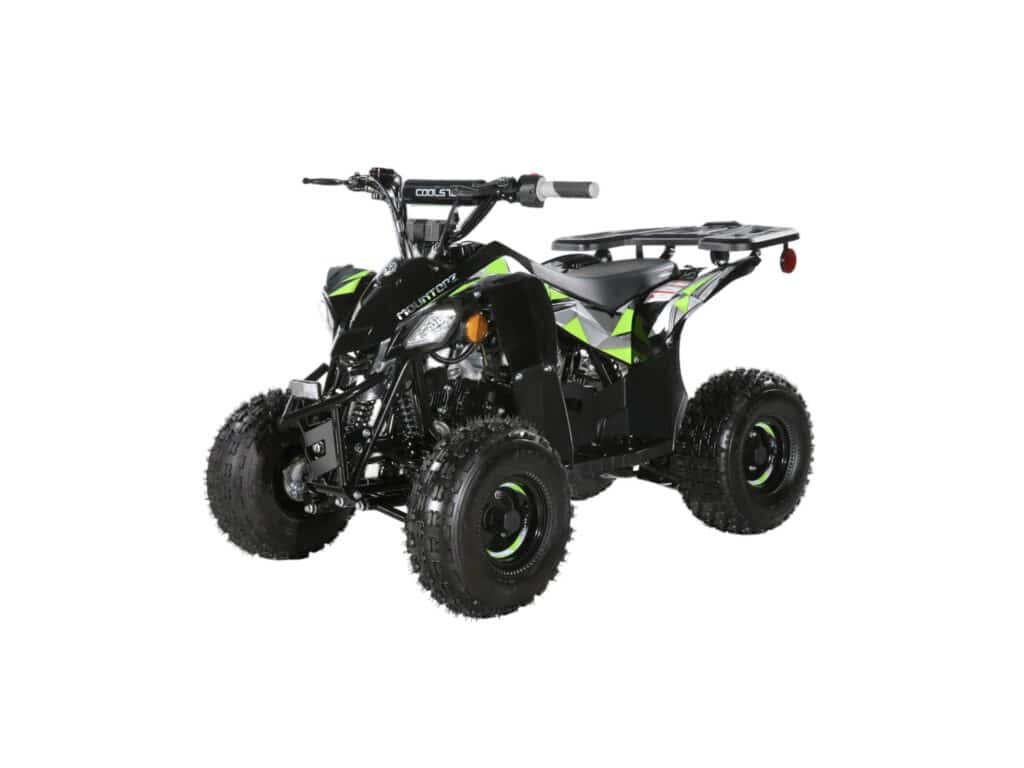

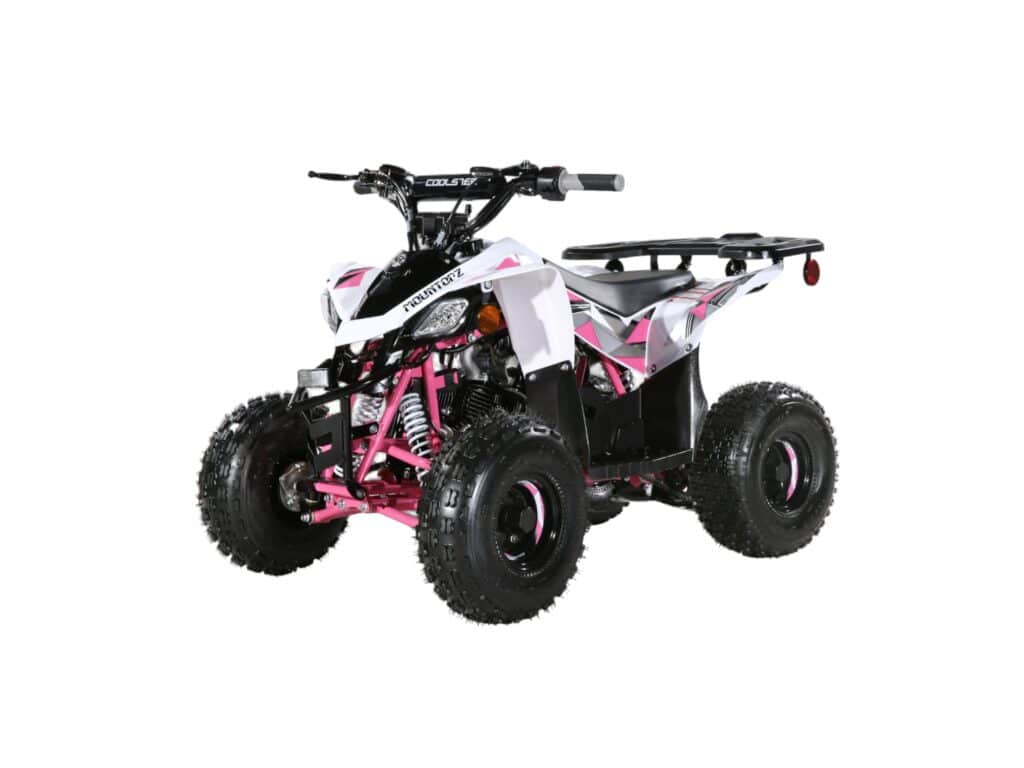

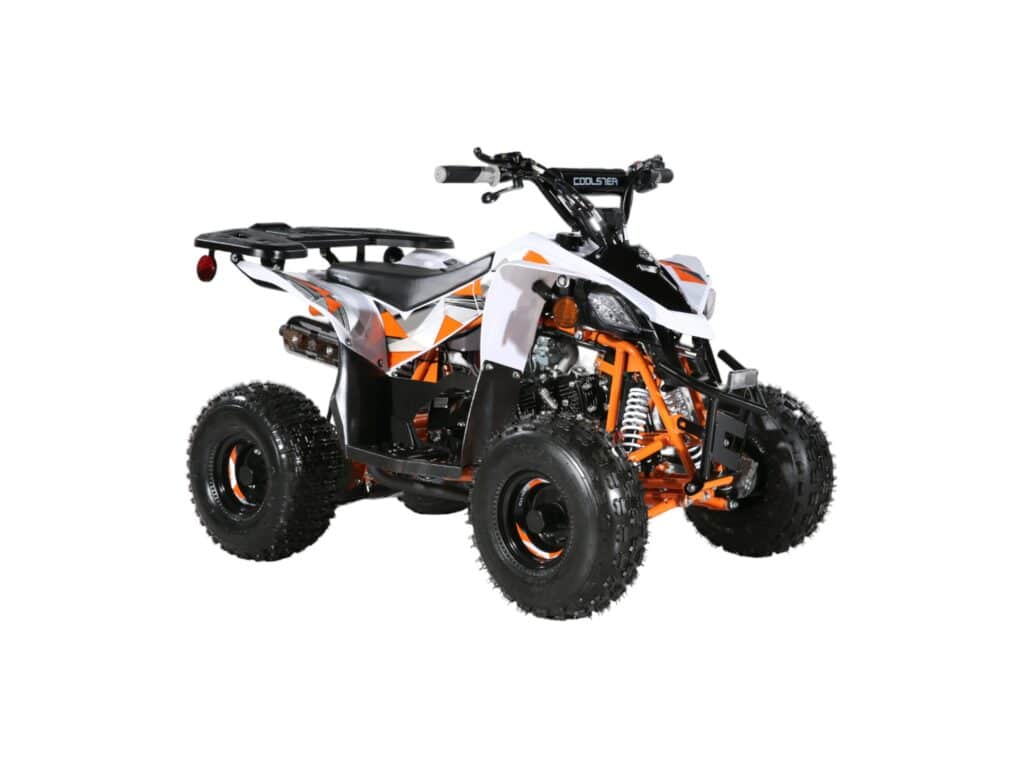

Small 110cc Sport ATV with Reverse

 Model Number:

Small Sport 110cc ATV

 Engine Type:

Single Cylinder, 4-Stroke, Natural Air Cooling

 Displacement:

107cc

 Max Torque:

6.9N.m/6,500 ± 500r/min (N.m/r/min)

 Max Power:

4.8kW/8,000 ± 500r/min (kW/r/min)

 Bore Stroke:

52.4 x 49.5 mm

 Ignition:

CDI

 Starting System:

Electric

 Battery:

12V, 4Ah

 Clutch:

Automatic

 Transmission:

Chain, Rear Wheel Drive

 Brakes Front/Rear:

Drum/Hydraulic Disc

 Tires Front/Rear:

15 x 5-6 /15 x 6-6 (10 Psi for both)

 Fuel Capacity:

0.54 gallons / 2.06L

 Weight:

Gross (165lbs/74.8kg), Net (160.5lbs/72.8kg)

 Max Load:

165 lbs / 75 kg (rider, all cargo and accessories)

 Wheelbase:

850 mm

 Dimensions:

1,345 x 785 x 835 mm

 Height to Seat:

590 mm

 Min. Ground Clearance:

80 mm
