300CC 4WD ATV LOADED WITH FEATURES
300CC 4WD ATV LOADED WITH FEATURES
Couldn't load pickup availability

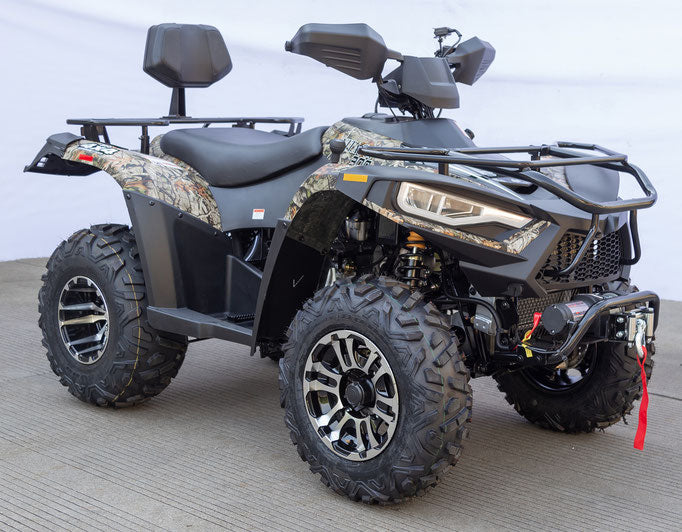

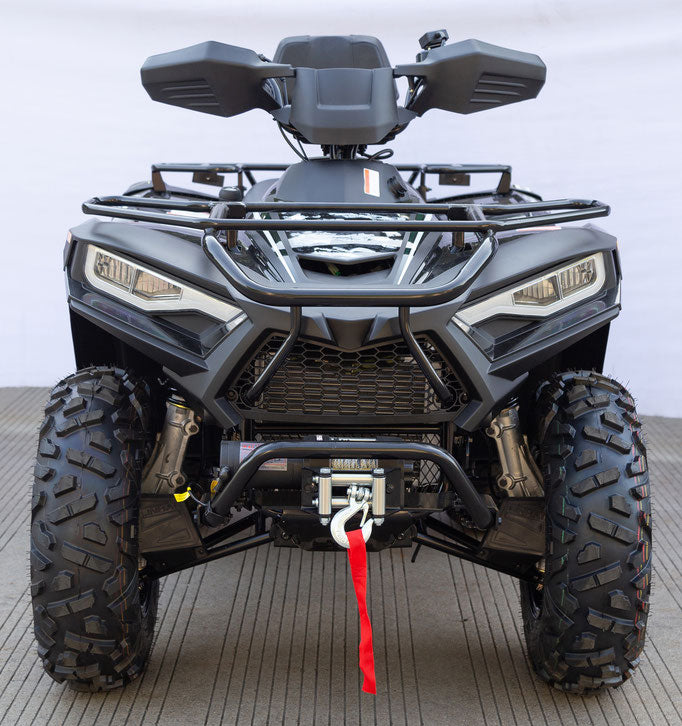

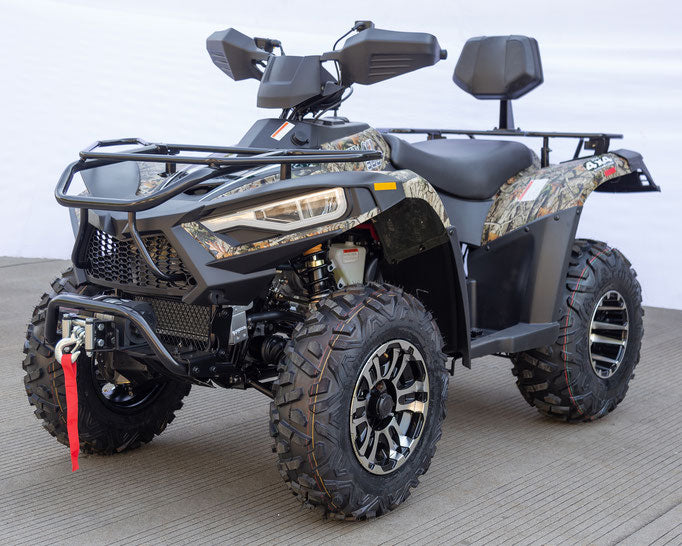

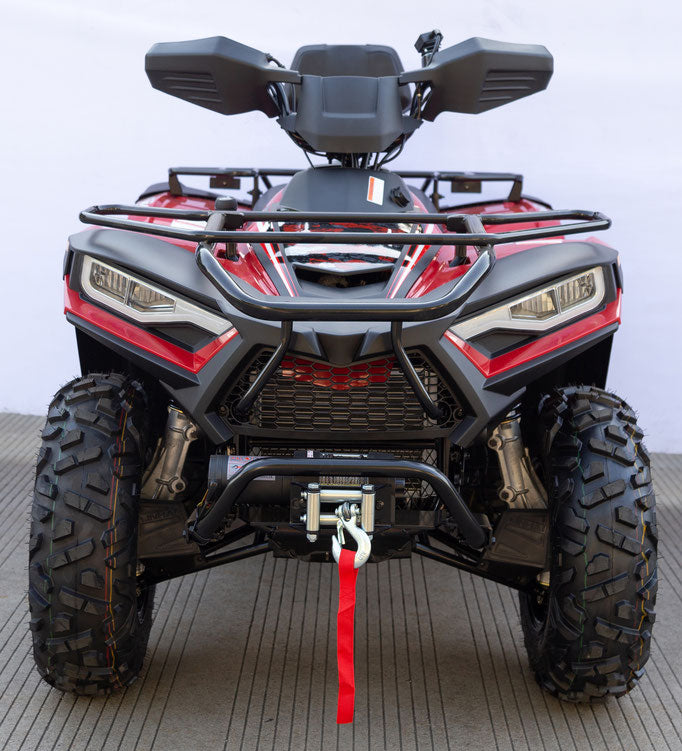

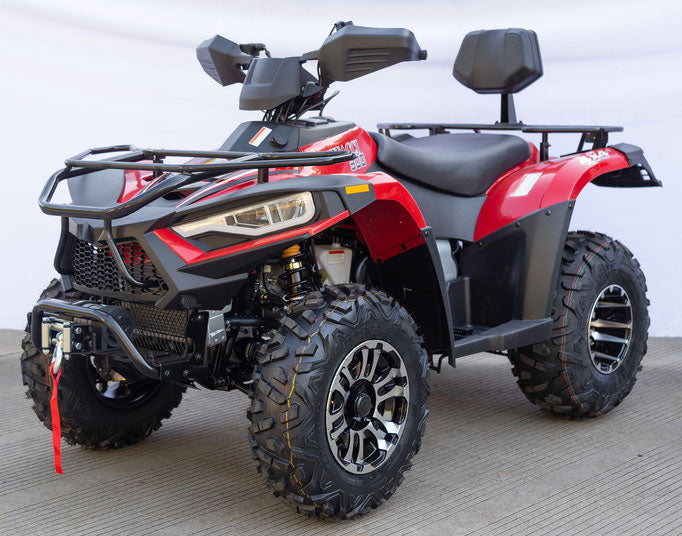

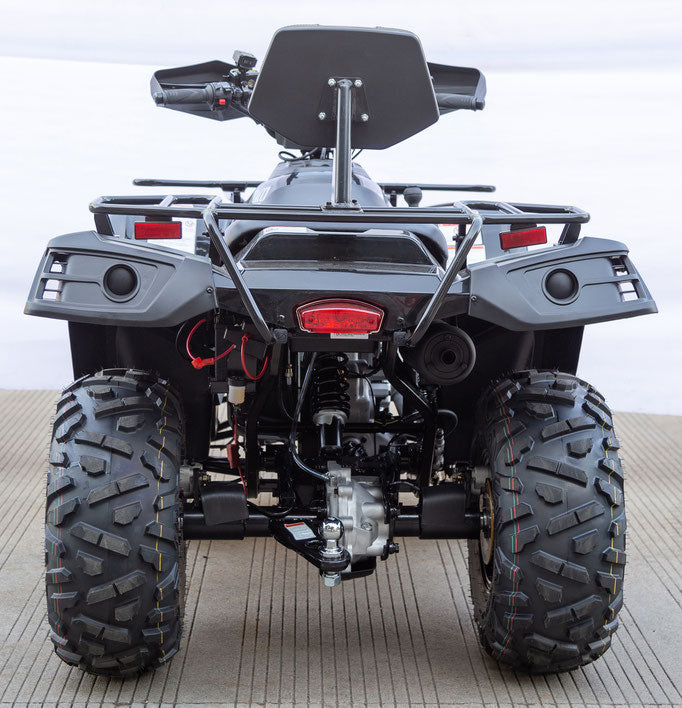

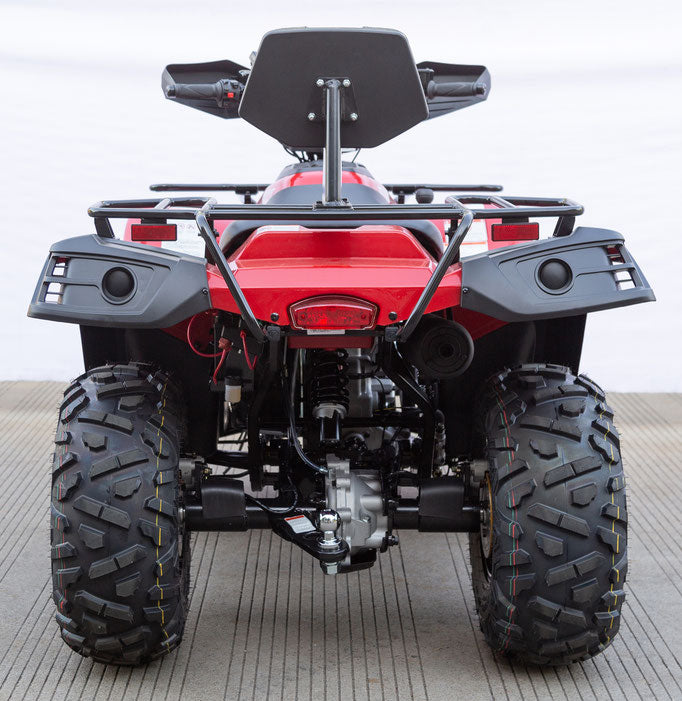

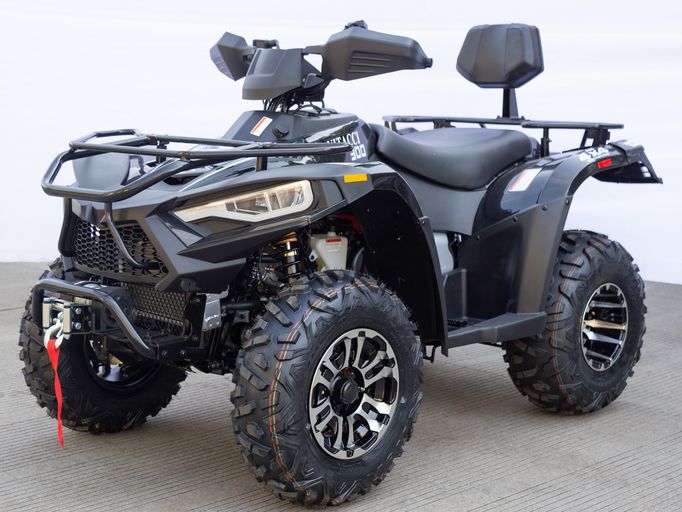

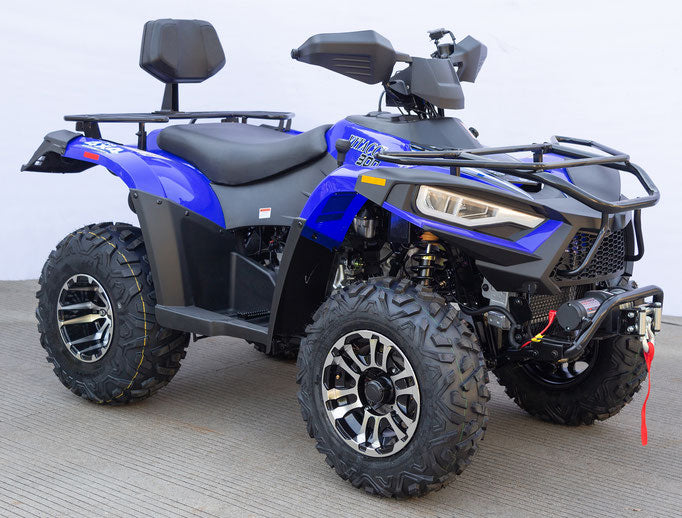

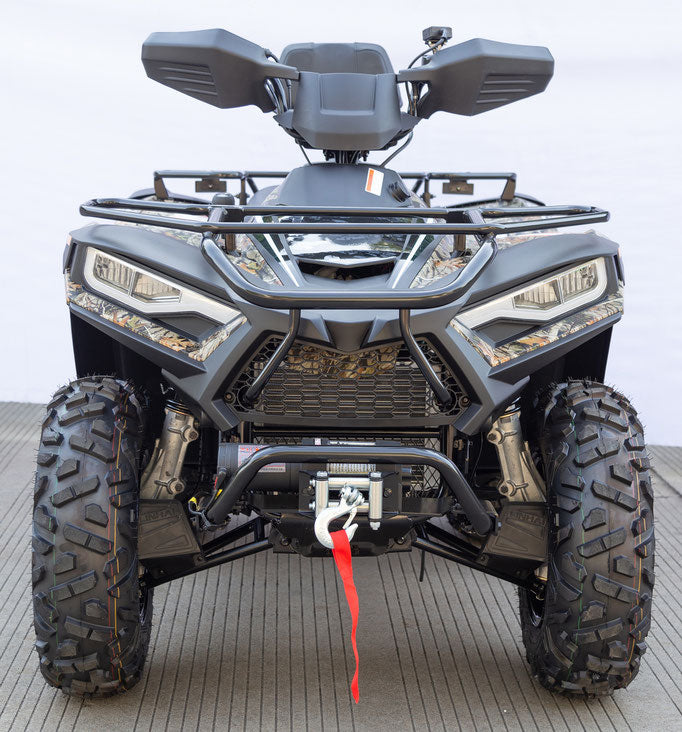

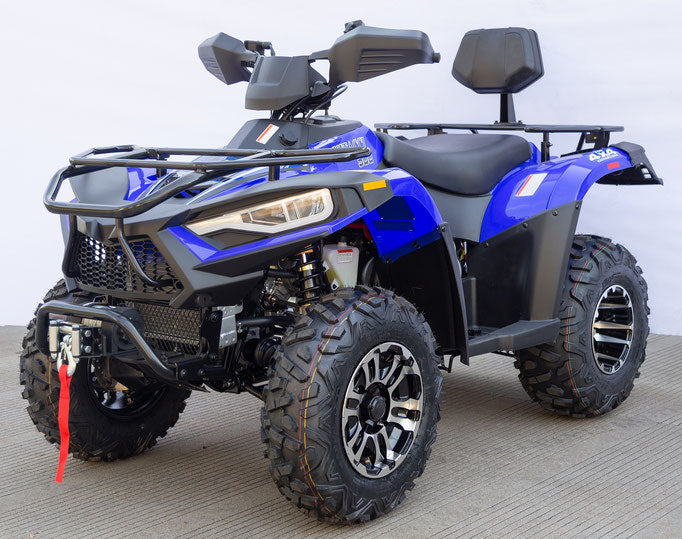

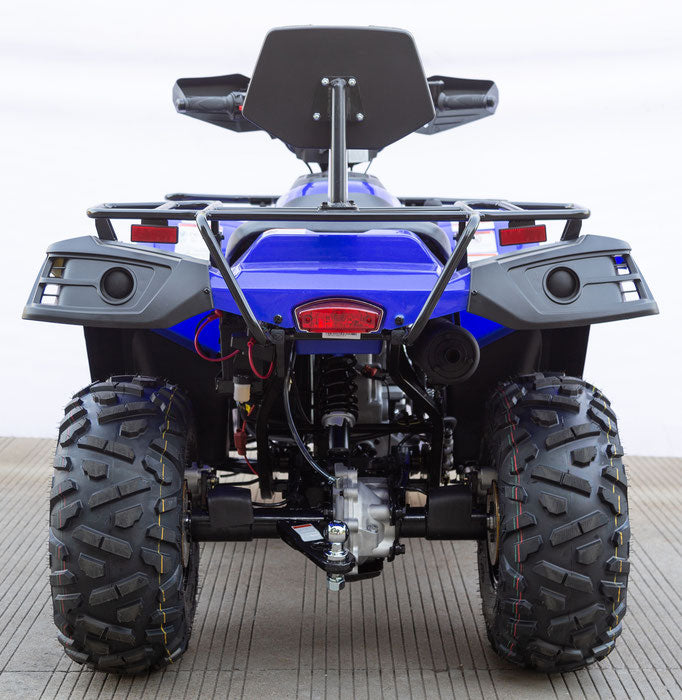

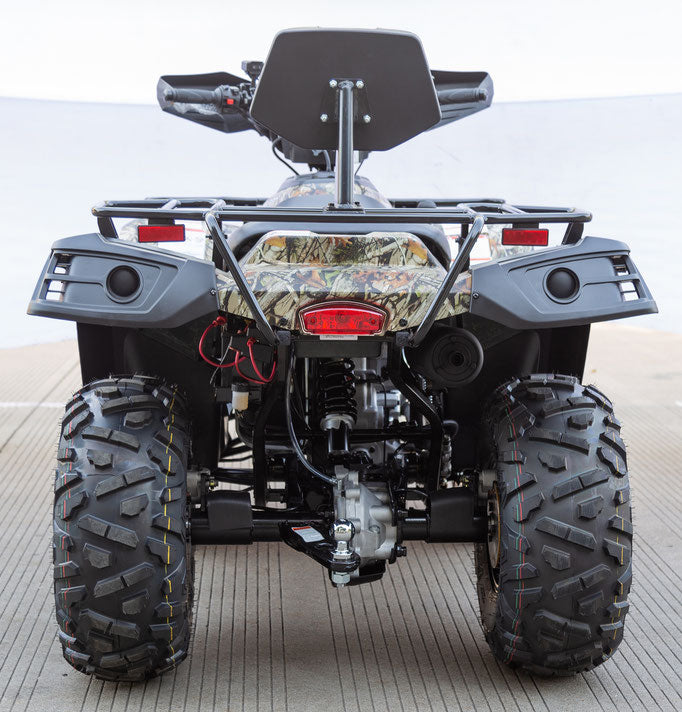

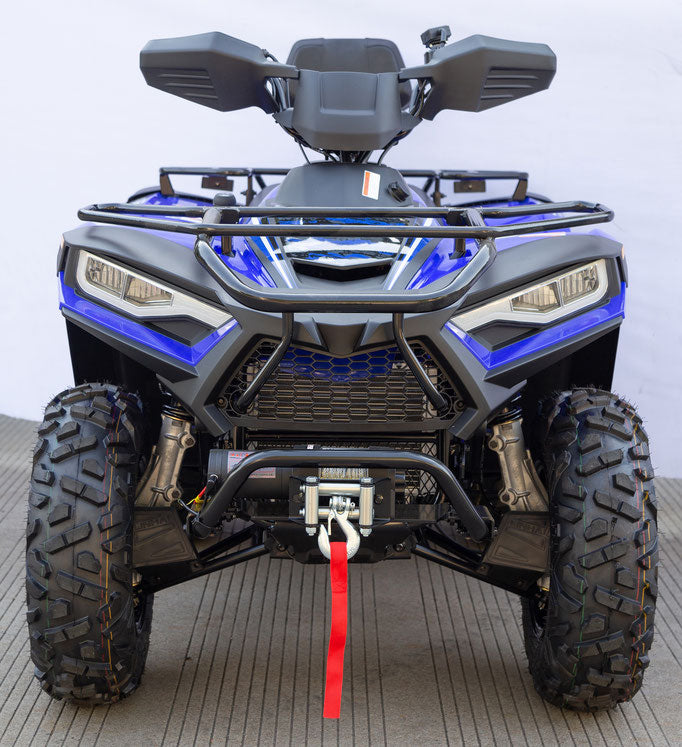

This 300cc ATV is manufactured by Linhai, which has a very long history of quality and durability. The ATV comes loaded with features including hand guards, front and rear racks, very large and comfortable seat, headlights with high and low beam, daytime running lights, front bumper and 2,500 lb winch, upgraded tires and wheels, dry storage under seat, backrest for rear passenger, 4WD, etc. With this machine performance, value and features go hand in hand. Backed by a 1 Year Factory Warranty, with 4 years of additional warranty available as well.
| Vehicle specification | |
| Overall Vehicle Size (L x W x H) | 83x46x 50 in |
| Ground Clearance (inch) | 7.2 in |
| Wheelbase (inch) | 51 in |
| Weight with full equipment | 618 lbs |
| Front / Rear Brakes | Two sides hydraulic disc |
| Parking Brake | Front / Rear hand brake,Foot brake |
| Front Tires | AT24X8-12 |
| Rear Tires | AT24X11-10 |
| Front Suspension | McPherson independent suspension |
| Rear Suspension | Socket centering structure |
| Fuel Capacity | 3.8 gallons |
| Engine specification | |
| Engine model | LH173MN |
| Engine Type | Carburetor, 4 Stroke, Single Cylinder, SOHC, Water Cooling |
| Bore & stroke | 2.85*2.63 in |
| Volumetric Compression Ratio | 10.3:1 |
| Displacement | 257cc |
| Drive System Type | 2WD or 4WD |
| Ignition type | T.C.I |
| Start type | Electric |
| Maximum power (Kw /r/min) | 22 HP @ 6500 RPM |
| Maximum Torque (Nm /r/min) | 14.8 lb-ft @ 5500 RPM |
AGE REQUIREMENT: (G16) 16 year old and up
